Electric Hydraulic Towable Spider Trailer Mounted Boom Lift

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Qingdao Sinofirst Machinery Manufacturing Co.,Ltd
[China]

Address
Danshan Industrial Park, Chengyang Qingdao Shandong
Phone
86-0532-68076300
Contact name
Arrizo Wong

Quick Information

  • Brand Name: SAGA FIRST
  • Place of Origin: China
  • Model Number : TBL16
  • Lift Drive/Actuation : Hydraulic
  • Lift Mechanism : Articulated Lift
  • Max. Lifting Height : 16000mm
  • Min. Lifting Height : 1900mm
  • Overall Dimensions : 7000*1730*2200mm
  • Power : 2.0KW, Diesel,Gas, Battery
  • Rated Loading Capacity : 200KG
  • Table Size : 1200*800mm
  • Weight : 2600KG
  • Warranty : 12 Months
  • Working Radius : 9.5m
  • Support Legs: : Hydraulic/4
  • Moving Mode: : By Tractor with retractor
  • Travel Speed: : Max 90Km/h

Description

Electric Hydraulic Trailed Towable Spider Aerial Boom Lift

- OEM  & ODM Service -

Model TBL-8 TBL-10 TBL-12 TBL-14 TBL-16 TBL-18 TBL-20
Platform size(mm) 1200*800 1200*800 1200*800 1200*800 1200*800 1200*800 1200*800
Lifting height(m) 8 10 12 14 16 18 20
Working height(m) 10 12 14 16 18 20 22
Load capacity(kg) 200 200 200 200 200 200 200
Working radius 4.5 5.2 6.4 8.5 9.5 10.9 12.5
Net Weight(kg) 1538 1700 1800 2350 2600 4300 4450
Overall Length(mm) 5200 5400 6400 6200 7000 7100 7700
Overall Width(mm) 1585 1665 1665 1730 1730 1850 1850
Overall height(mm) 1900 1900 1900 2100 2200 2260 2260



Towable Articulated boom lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 8m to 20m. Articulated boom lift is driven by Diesel,Gas, or Battery or confused Power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.



Product Description



Towable Articulated boom lift moves by tractor towing and lifts by diesel, gas or battery power. Operator can control lifting and lowering both on the platform and on the ground through the control system.

 17 towable boom lift



5 Scissor Lift Table.jpg



Fast Travel Speed                High Quality Retractor                   Multi Power for Option
Rubber Wheels                     Synchronously Brakes System     Hydraulic Support Legs
Emergency Stop Button        Emergency Lowering System       Cylinder Check Valve
Anti Explosion Valve             Adjust Valve                                  Overload Protection System

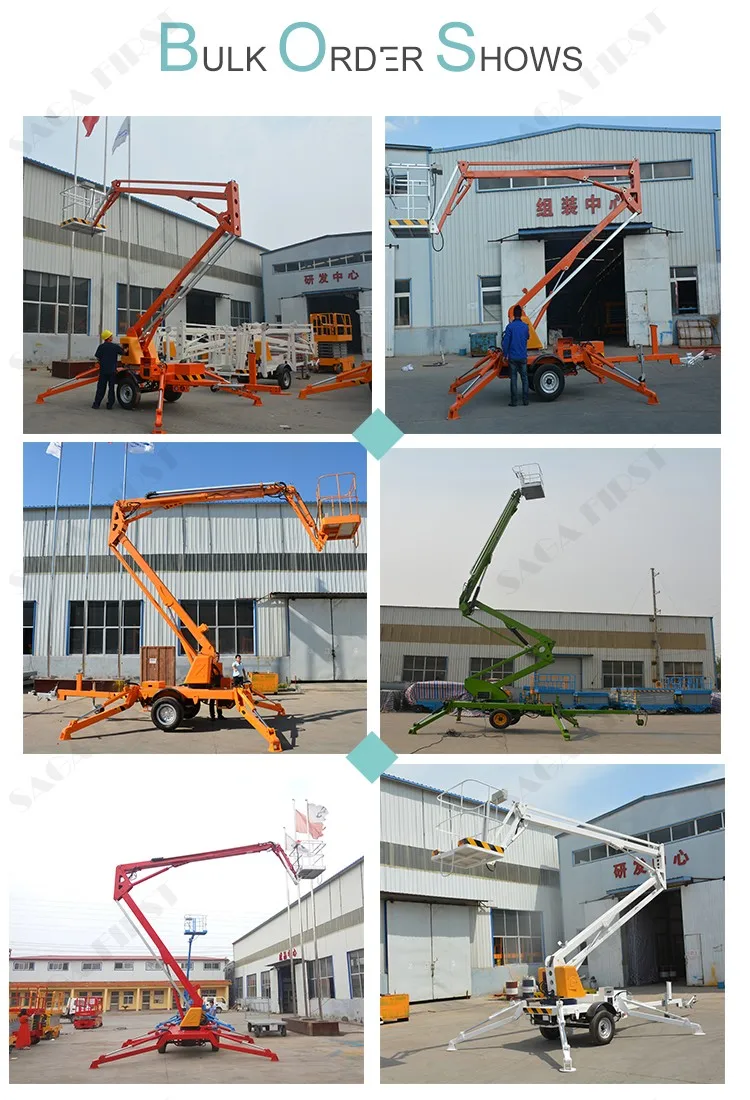

bulk order

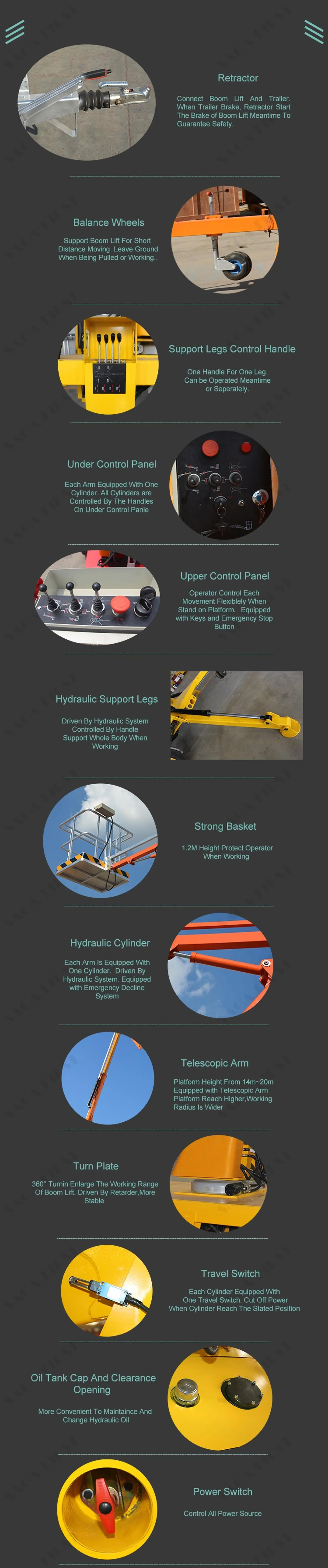

Detailed Images

 Safety Precautions:
1. Explosion-proof valves                  2. Spillover valve                  3. Emergency decline valve

4. Check Valve                                  5. Adjustment Valve              6. Gradienter



 18 towable boom lift


Applications

Towable Articulated boom lift is widely used  in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.

applications




Certifications

Hydraulic Self Propelled Scissor Lift are approved by European certificates and meet the international standards.



14 Lift Table

6 Scissor Lift Table

16 Lift Table






 Questions

 Answers

 Are you a factory or trading company?

 We're factory with over 12years exporting experience.

 What's the MOQ?

 1UNIT,the more,the better.

 What's the payment terms?



 >USD5000:  30%TT in advance,balance before shipment.

 >USD100,00: TT or Irrevocable L/C At Sight.

 Do you offer OEM&ODM service?

 Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.

 What's the delivery time?

 15~20days after down payment

 What's the quality warranty?

 24 months.Offer free parts for replacement.

 How can I get the after-sales service?

 We offer videos,pictures and technical guidance immediately.

 What's your QA&QC policy?

 3times 100% inspection before shipping.

 Can you tell me your clients in my country?

 Of course. But only after the permittance of customers.
